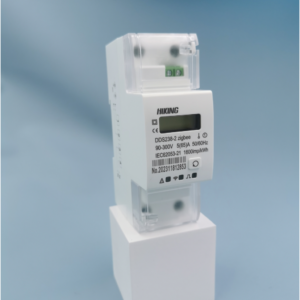

DDS238-2 Zigbee energy meter is designed to measure single phase two wire AC active energy and variable parameter like residential, utility and industrial application. It can remote read from Zigbee communication(Smart life or Tuya smart APP) . It is a long life meter with the advantage of high stability, high over load capability, low power loss and small volume.
Basic Function
★LCD display, button for LCD display step by step
★Bi-directional total active energy, reverse active energy measure in the total active energy
★The meter also display real voltage, current, active power, reactive power , power factor, frequency
★Timing and delay control by APP
★Day/Month/Year history active energy consumption tracking by APP
★check the real current ,voltage active power by APP
★remote control on/off by APP
★Zigbee communication, can read and remote control by mobile phone APP
★It should connect with TUYA Zigbee gateway
★Manual Control by button under lose WIFI
★Pulse LED indicates working of meter, Pulse output with optical coupling isolation
★Energy data can store in memory chip more than 15 years after power off
★35mm din rail installation

Material: PC
IP Rating: 20
Color: WHITE
Power Supply Type: 90-300V AC
Battery Type: NO
Product Size: 100*36*65 mm
Net Weight: 0.185 g
